This APC Smart-UPS RT is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line tower/rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with1 hardwire 3-wire (1PH+N+G), 1 hardwire 5-wire (3PH + N + G) , 8x IEC 320 C13、2xIEC 60320 C19 and 2x 1 IEC Jumpers outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately.

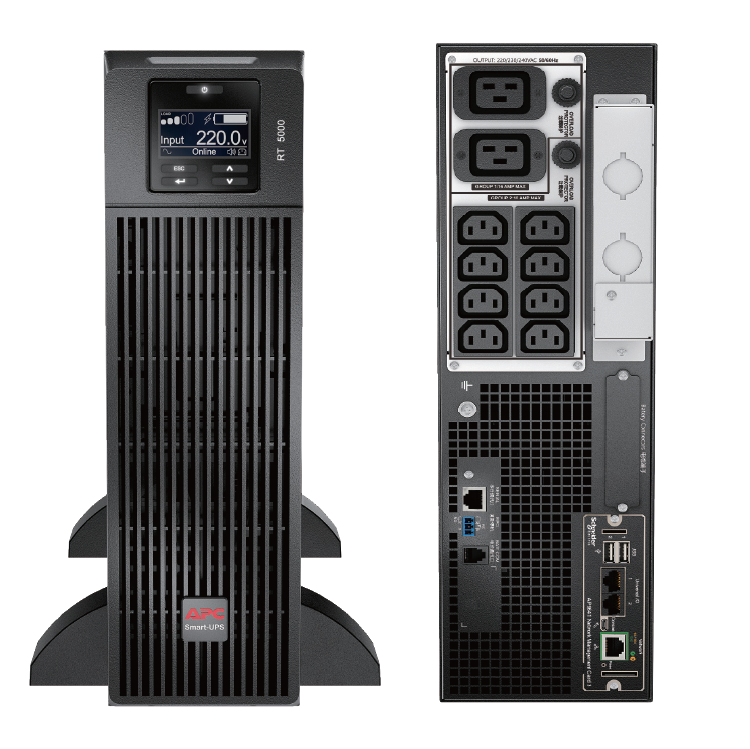

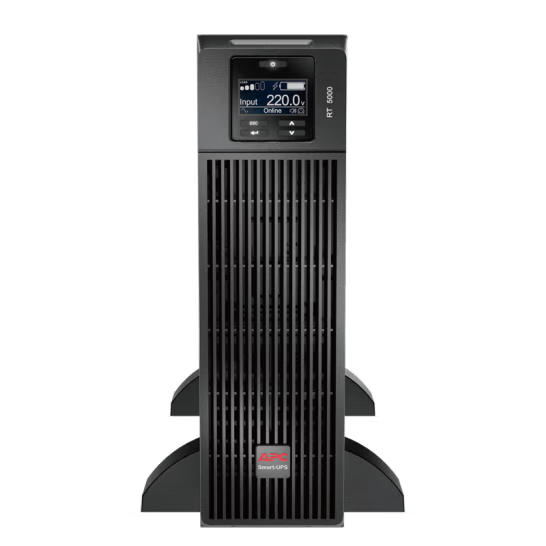

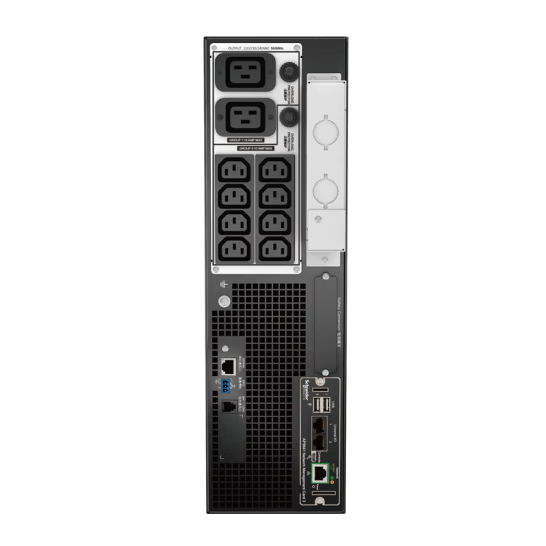

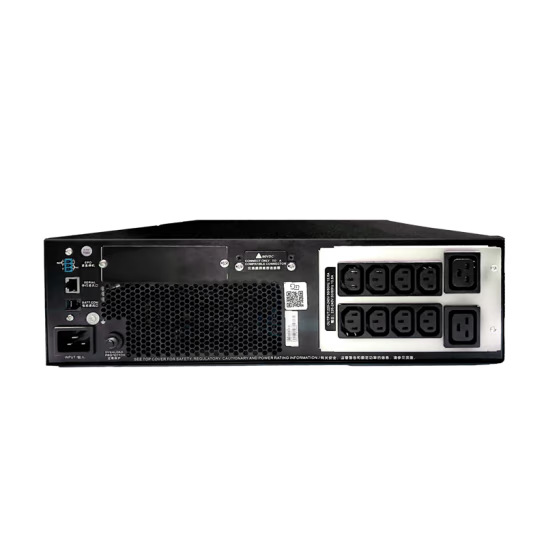

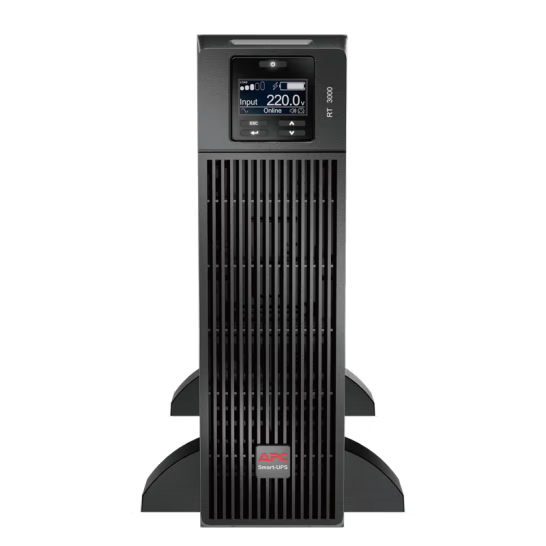

APC Smart UPS ONLINE 3000UX-SURT3000UXI-CH

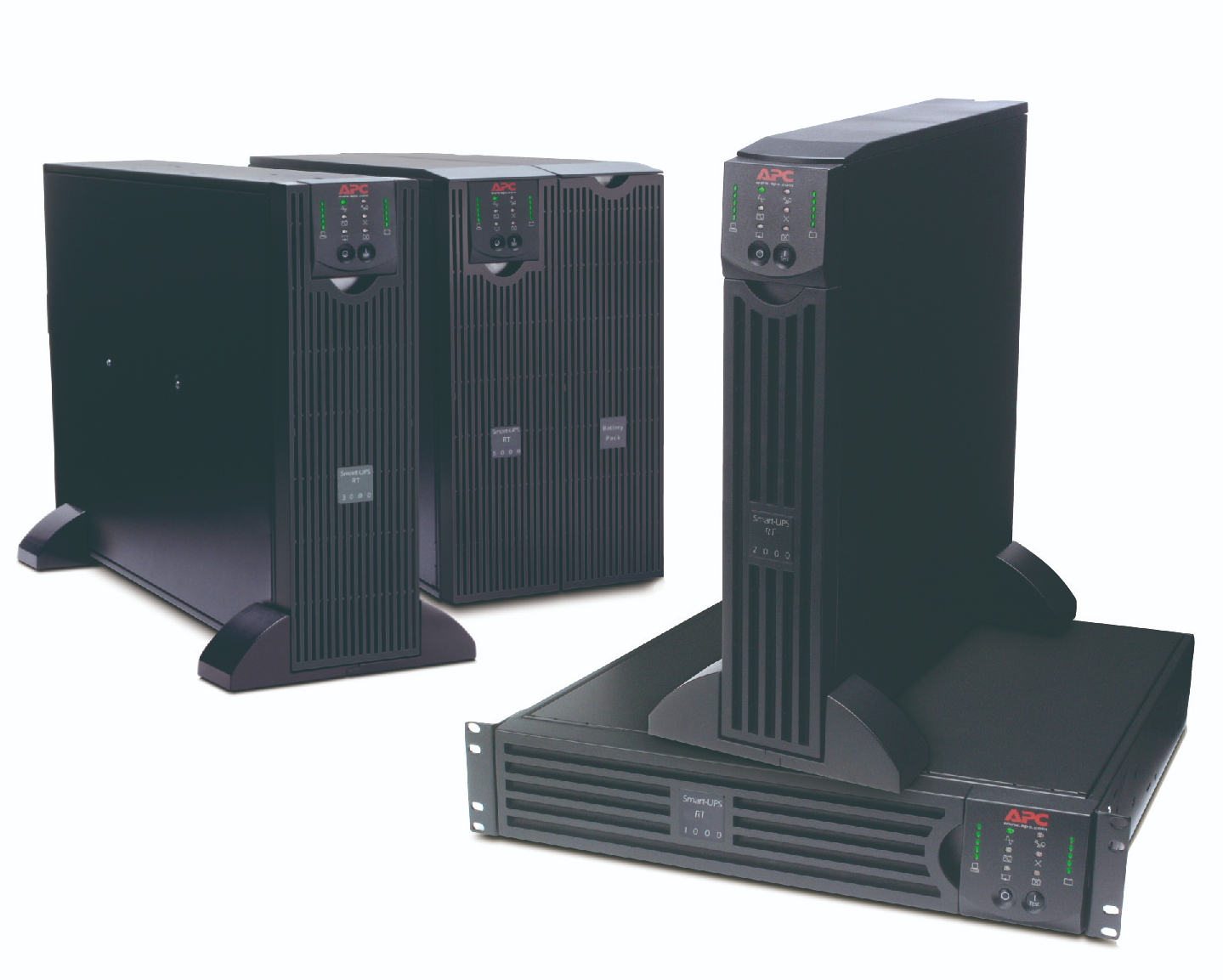

| APC SMART UPS RT Series Products Order Checklist | |
| Standard Model with Built-in Battery | Product Feature Description |
| SURT1000XLI-CH（2U) | APC SMART UPS RT 1000VA/900W；230VAC；LCD Display； 48VDC |
| SURT2000XLI-CH（2U) | APC SMART UPS RT 2000VA/1800W；230VAC；LCD Display； 48VDC |
| SURT3000XLI-CH（3U) | APC SMART UPS RT 3000VA/2700W；230VAC；LCD Display； 96VADC |
| SURT5000XLI-CH（3U) | APC SMART UPS RT 5000VA/5000W；230VAC；LCD Display； 192VDC |
| SURT6000XLI-CH（3U) | APC SMART UPS RT 6000VA/6000W；230VAC；LCD Display； 192VDC |
| SURT8000XLI-CH（6U) | RT 8000VA/8000W；Single-phase 230VAC；Three-phase 380VAC； LCD Display； ±192VDC |
| SURT10000XLI-CH（6U) | RT 10000VA/10000W；Single-phase 230VAC；Three-phase 380VAC； LCD Display； ±192VDC |
| Extended Runtime Model | Product Feature Description |
| SURT1000UXI-CH（2U) | APC SMART UPS RT 1000UX/900W；230VAC； LCD Display； Extended 48VDC |
| SURT2000UXI-CH（2U) | APC SMART UPS RT 2000UX/1800W；230VAC； LCD Display；Extended 48VDC |
| SURT3000UXI-CH（3U) | APC SMART UPS RT 3000UX/2700W；230VAC； LCD Display；Extended 96VDC |
| SURT5000UXI-CH（3U) | APC SMART UPS RT 5000UX/5000W；230VAC； LCD Display；Extended 192VDC |
| SURT6000UXI-CH（3U) | APC SMART UPS RT 6000UX/6000W；230VAC； LCD Display；Extended 192VDC |
| SURT8000UXI-CH（6U) | RT 8000UX/8000W；Single-phase 230VAC；Three-phase 380VAC； LCD Display；Extended ±192VDC |
| SURT10000UXI-CH（6U) | RT 10000UX/10000W；Single-phase 230VAC；Three-phase 380VAC； LCD Display；Extended ±192VDC |
| SURT15KUXI-CH（6U) | RT 15000UX/15000W；Single-phase 230VAC；Three-phase 380VAC； LCD Display；Extended ±192VDC |
| SURT20KUXI-CH（6U) | RT 20000UX/20000W；Single-phase 230VAC；Three-phase 380VAC； LCD Display；Extended ±192VDC |
| Extended Battery Pack | Product Feature Description |
| SURT48XLBP-CH（2U) | Extended Battery Pack for SURT1000/2000 |
| SURT96XLBP-CH（3U) | Extended Battery Pack for SURT3000 |
| SURT192XLBP-CH（3U) | Extended Battery Pack for SURT5K/6K/8K/10K |
| SURT192XLBP2-CH（6U) | Extended Battery Pack for SURT15K/20K |
| Replace Battery Cartridge | Product Feature Description |
| RBC31 | Replace By APCRBC48BP-CH Replace Battery Cartridge for SURT1000XLICH/SURT2000XLICH |
| RBC44 | Replace By APCRBC140 Replace Battery Cartridge for SURT3000XLICH/5K/6K/8K/10K |
| APCRBC140 | Replace Battery Cartridge for SURT3K/5K/6K/8K/10K/SURT96XLBP-CH/ SURT192XLBP-CH/SURT192XLBP2-CH |
| APCRBC48BP-CH | Replace Battery Cartridge for SURT1K/2K/SURT48XLBP-CH |
| APCRBC96BP-CH | Replace Battery Cartridge for SURT3K/SURT96XLBP-CH |
| APCRBC192BP-CH | Replace Battery Cartridge for SURT5K/6K/8K/10K/ SURT192XLBP-CH/SURT192XLBP2-CH |
| Rack-mounted Installation Accessories | Product Feature Description |
| SURTRK-CH | Suitable for SURT1K/2K/SURT48XLBP-CH |
| SURTRK2-CH | Suitable for SURT3K/5K/6K/SURT96XLBP-CH/SURT192XLBP-CH |
| SURTRK3-CH | Suitable for SURT8K/10K/15K/20K/SURT192XLBP2-CH |
| Power Management Accessories | Product Feature Description |
| AP9641 | Third-generation network management card with environmental monitoring capabilities, supports SNMP, Modbus TCP, and BACnet (built-in for 5-20kVA models). |
| AP9640 | Third-generation network management card, supports SNMP, Modbus TCP, and BACnet. |
| AP9643 | Third-generation network management card with environmental monitoring and Modbus support, compatible with SNMP, Modbus TCP, Modbus RTU, and BACnet. |
| AP9613 | Relay Input/Output Card |
| AP9810 | Relay Input/Output Accessory, provides additional dry contact interfaces for network management cards such as AP9641/AP9643. |
| AP9834 | Provides Wi-Fi support for network management cards such as AP9641/AP9643. |
Here are the detailed technical specifications for the SURT3000UXI-CH model from the Smart-UPS RT series:
### SURT3000UXI-CH
#### Output
- **Rated Capacity:** 3kVA / 2.7kW
- **Rated Output Voltage:** 220V (default) / 230V / 240V
- **Output Voltage Accuracy:** ±1% (static), ±5% (dynamic)
- **Output Frequency:** 50/60 Hz ± 3 Hz (adaptive), 50/60 Hz ± 0.1 Hz (user-configurable)
- **Output Voltage Distortion:** <2% (linear load), <4% (non-linear load)
- **Crest Factor:** 3:1
- **Full Load Efficiency:** Typical value of 92% in online mode, typical value of 97% in efficient mode
#### Overload Capacity
- Continuous operation at ≤105%, 1 minute at 125%, 30 seconds at 150%, 3 seconds at 180%
#### Output Interface
- (8) IEC C13, (2) IEC C19
#### Input
- **Rated Input Voltage:** 220V (default) / 230V / 240V
- **Input Voltage Range:** 160~275 VAC (full load), 100~275VAC (derating to 50%~100%)
- **Input Frequency:** 40~70Hz
- **Input Power Factor:** > 0.99
- **Input Current Distortion (THDI):** <5%
- **Input Interface:** IEC C20
#### Battery
- **Battery Type:** Maintenance-free VRLA lead-acid battery
- **Standard Charging Time to 90% Capacity:** <3 hours
- **Battery Voltage:** 96VDC
- **Charging Current:** XLI model: 1A / UXI model: 6A max.
- **Typical Runtime (Half Load/Full Load):** 10.9 minutes / 3.4 minutes
#### Communication and Management
- **Communication Interface:** (1) SmartSlot accessory card slot; (1) Serial communication port

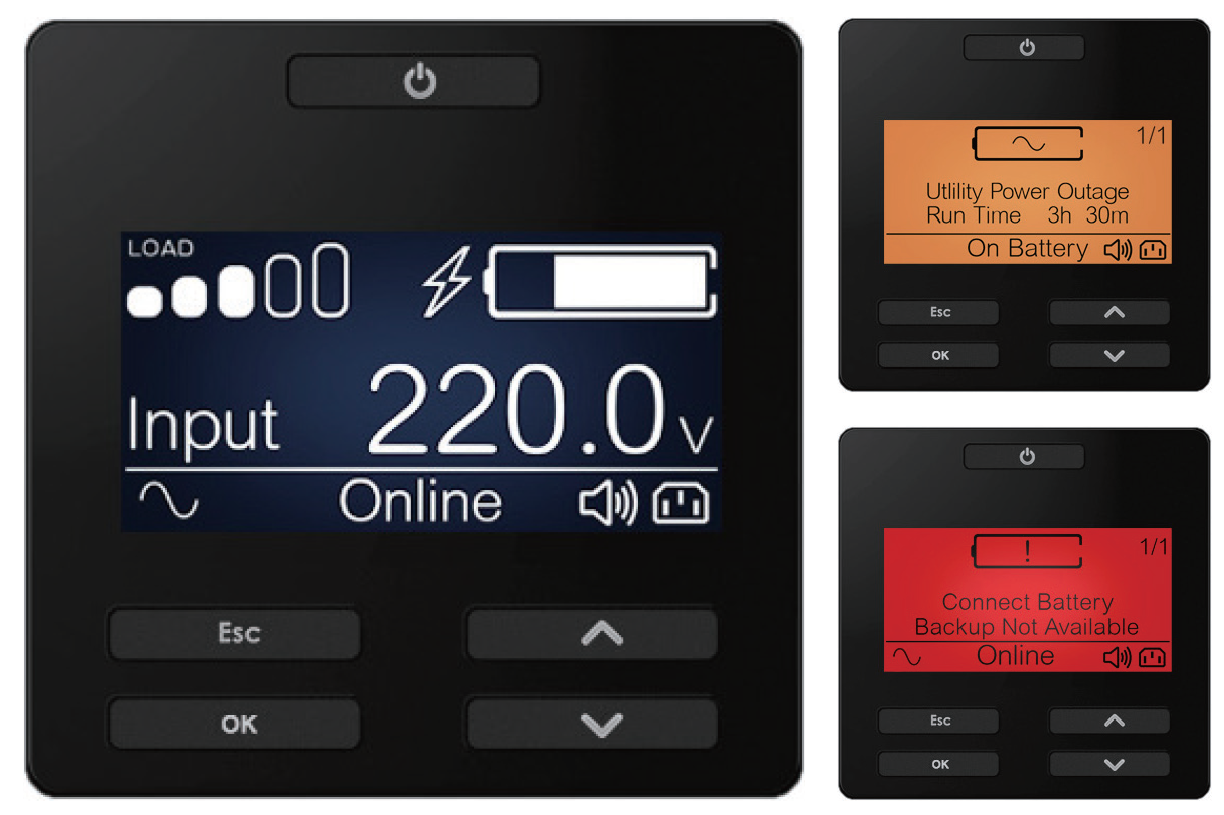

- **Control Panel:** Multifunctional LCD
- **Included:** PowerChute Business Edition for Windows 10/11, Windows Server 2016/2019/2022, SuSE Linux, Red Hat Enterprise Linux
- **Power Management Software:** Microsoft Hyper-V, VMware ESXi
- **Emergency Power Off (EPO):** Yes
#### Physical Characteristics
- **Installation:** Rack/tower convertible
- **Dimensions:** 438*130*557 mm (3U)
- **Weight:** XLI model: 29.90kg / UXI model: 14.45kg
- **Color:** Black
#### Environmental Parameters
- **Operating Environment Requirements:** Temperature 0~55°C (0~40°C derating), Humidity 0~95% (non-condensing), Altitude 0~3000 meters (>1000 meters derating)
- **Storage Environment Requirements:** Temperature -20~60°C, Humidity 0~95% (non-condensing), Altitude 0~15000 meters
- **Noise (1 meter):** <55 db
#### Protection Level
- **Protection Level:** IP20
#### Standards and Warranty
- **Standard/Certification:** CE, TLC, EN/IEC62040-1, EN/IEC62040-2, EN/IEC61000-3-2, EN61000-3-3, RoHS, REACH
- **Warranty:** 2 years
#### Ordering Guide
- **Product Model:** SURT3000UXI-CH
- **Rail Model:** SURTRK2-CH
- **Built-in Battery Pack Model:** APCRBC96BP-CH
- **Extended Runtime Battery Pack Model:** SURT96XLBP-CH
