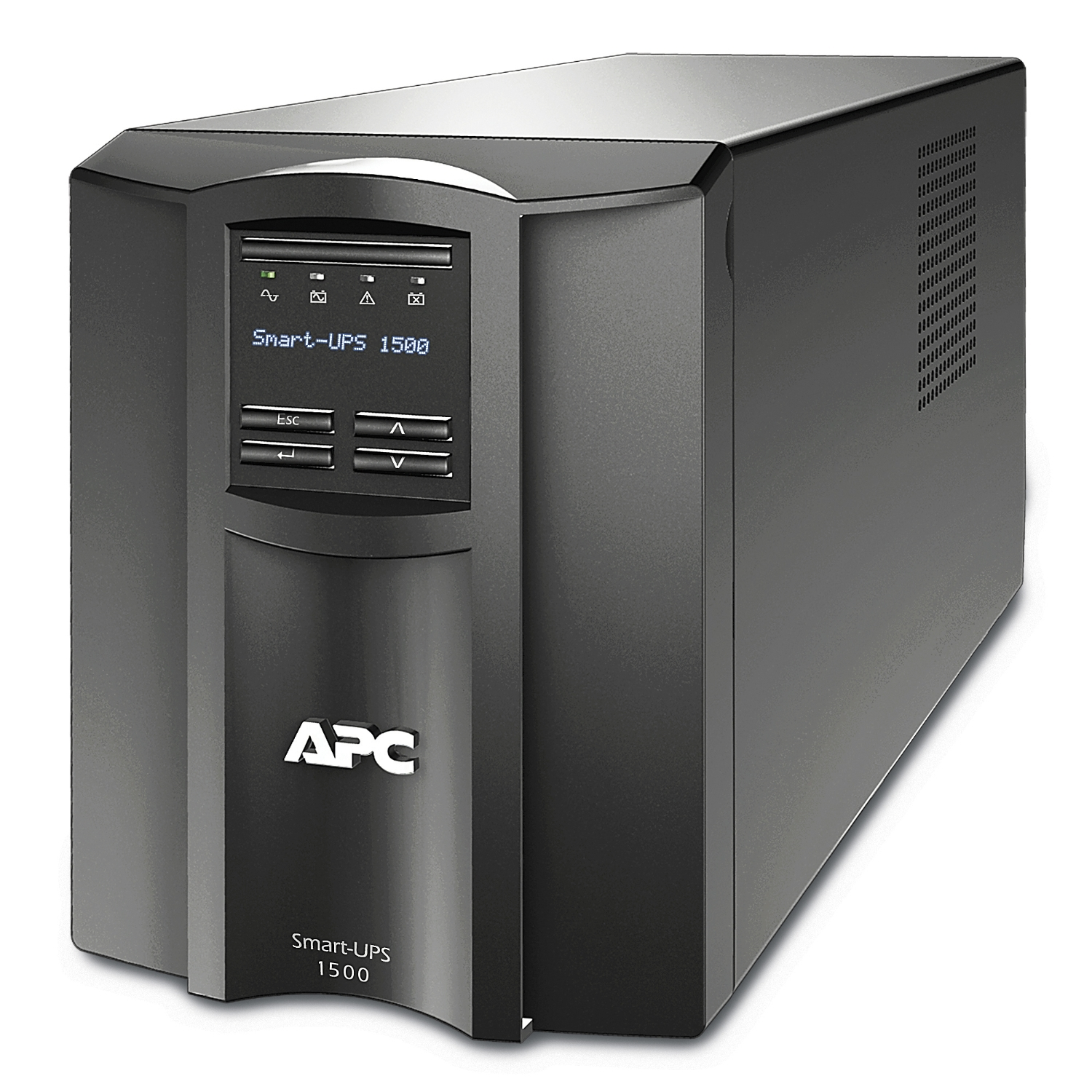

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 2-year warranty, and built-in lead-acid battery has a 1-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge RBC7 helps restore UPS performance to the original specifications.
| APC Smart UPS T Ordering List of SMT Series Products | |
| SMT Models | Model |
| SMT750I-CH | APC Smart-UPS T 750VA LCD 230V for China |
| SMT1000I-CH | APC Smart-UPS T 1000VA LCD 230V for China |
| SMT1500I-CH | APC Smart-UPS T 1500VA LCD 230V for China |
| SMT2200I-CH | APC Smart-UPS T 2200VA LCD 230V for China |
| SMT3000I-CH | APC Smart-UPS T 3000VA LCD 230V for China |
| SMT1000RMI2U-CH | APC Smart-UPS T 1000VA LCD RM 2U 230V for China |
| SMT1500RMI2U-CH | APC Smart-UPS T 1500VA LCD RM 2U 230V for China |
| SMT2200RMI2U-CH | APC Smart-UPS T 2200VA LCD RM 2U 230V for China |
| SMT3000RMI2U-CH | APC Smart-UPS T 3000VA LCD RM 2U 230V for China |
| SMT1000UXI-CH | APC Smart-UPS T 1000VA TOVER,EXTEND |
| SMT2200UXI-CH | APC Smart-UPS T 2000VA LCD TOVER,EXTEND |
| SMT3000UXI-CH | APC Smart-UPS T3000VA LCD TOVER,EXTEND |
Summary: APC Smart UPS SMT1500ICH
Delivery Time: Usually within 2 weeks
Main Information:
- Load Runtime: 1000 Watts, Minimum-Maximum: 100-1000 Watts
- Runtime: 6 minutes 30 seconds
- Maximum Utilization: 100%
- Main Input Voltage: 230V, Other Input Voltages: 230V, 220V, 240V
- Main Output Voltage: 230V
- Rated Power [W]: 1000 Watts, Rated Power [VA]: 1500 VA

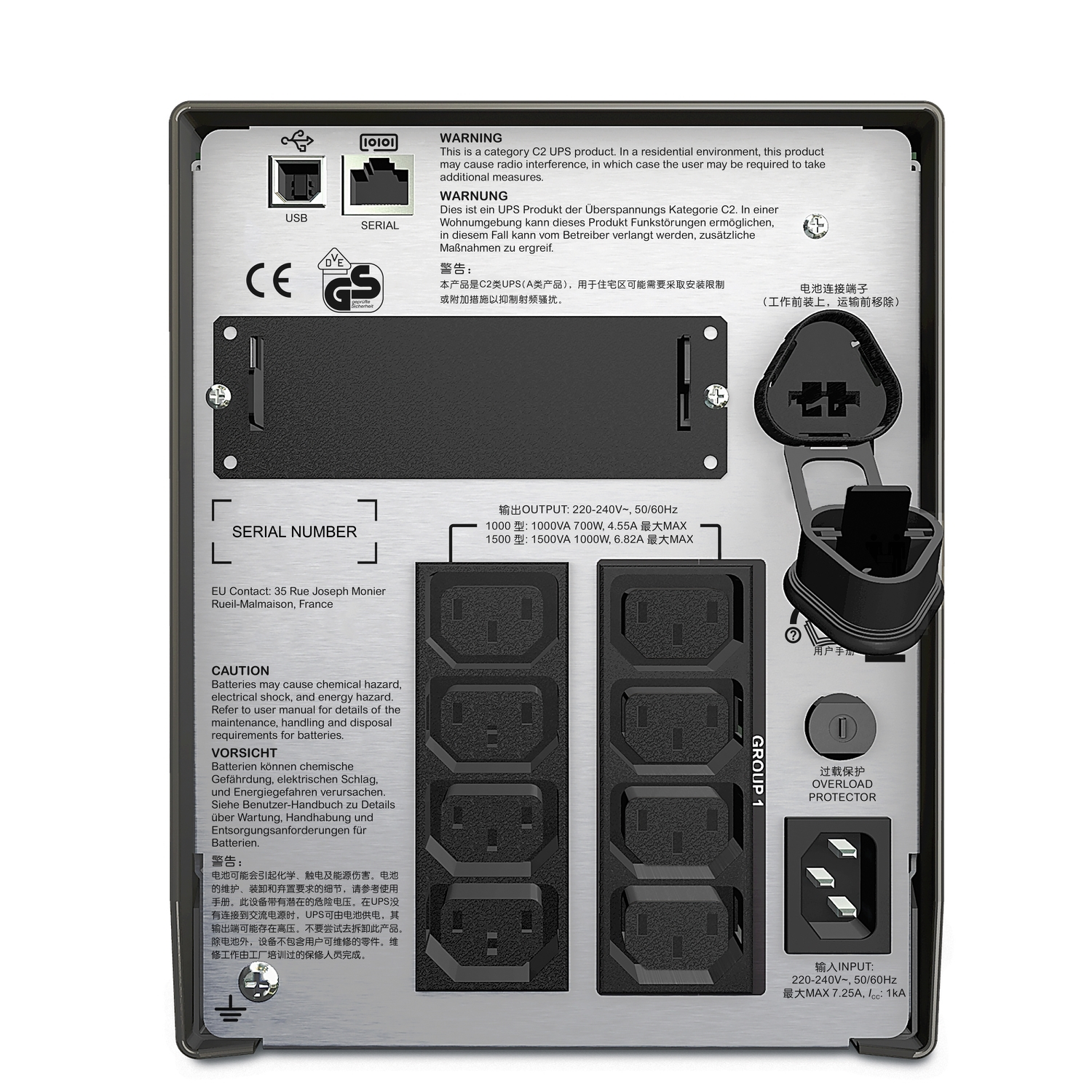

- Input Connection Type: IEC 60320 C14
- Output Connection Type: 8 IEC 60320 C13, 2 IEC Jumpers
- Cable Length: 1.83m, Cable Quantity: 1
- Battery Type: Lead-Acid Battery
Accessories:
- Installation Guide
- Smart-UPS RS232 Signal Cable
- USB Cable
Battery and Runtime:
- Runtime: View Runtime Graph
- Efficiency: View Efficiency Graph
- Other Parameters: Configurable for 220V, 230V, or 240V output voltage
- Power Voltage: 24V
- Configurable Delay Time: 1
- Pre-installed Battery: 1
- Empty Battery Slot: 1
- Typical Recharge Time: 3 hours
- Battery Design Life: 3-5 years
- Venturi Pipe: RBC7
- Battery Power in VAH: 408 VAh runtime
- Battery Charging Power [W]: 136W rated
General:
- Number of Power Module Filled Slots: 1
- Number of Power Module Free Slots: 1
- Redundant: Yes
Physical Parameters:
- Color: Black
- Height: 21.9 cm
- Width: 17.1 cm
- Depth: 43.9 cm
- Product Weight: 24.04 kg
- Mounting Position: Front
- Mounting Preference: No preference
- Mounting Type: Not rack-mountable, Two post mountable
- USB Compatible: Yes
Input:
- Input Voltage Limits: Adjustable 151-302V, 160-287V
- Network Frequency: 50/60Hz +/- 3Hz auto-sensing
Output:
- Crest Factor: 3:1
- Harmonic Distortion: Less than 5% at full load
- Maximum Configurable Power [VA]: 1500 VA
- Maximum Configurable Power [W]: 1000 Watts
- Transfer Time: 6ms typical
- Topology: Online Interactive
- Waveform Type: Sine wave
- Power: 96% at full load, 78% in battery operation
- Output Frequency (Synchronized with Main Frequency): 47-53Hz (Nominal 50Hz), 57-63Hz (Nominal 60Hz)
Compliance:
- Product Certifications: CE, VDE
Environment:
- Sound Level: 45 dB
- Online Operation Dissipation: 135 BTU/hr
- Operating Altitude: 0-3000m
- Operating Temperature: 0-40°C
- Storage Temperature: -15-45°C
- Storage Altitude: 0-15000m
- Relative Humidity: 0-95% Non-condensing
- Storage Relative Humidity: 0-95% Non-condensing
Communication and Management:
- Control Panel: Multifunction LCD status and control console
- Empty Slot: 1
- Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm
Surge Protection and Filtering:
- Surge Energy Rating: 459 Joules
- Filter: Multi-stage noise filtering, compliant with UL1449 standard
Packaging Unit:
- Unit Type of Package 1: PCE
- Number of Units in Package 1: 1
- Package 1 Height: 37.6 cm
- Package 1 Width: 32.8 cm
- Package 1 Length: 59.5 cm
- Package 1 Weight: 37.23 kg
Contract Warranty:
- Warranty: 2 years repair or replace
