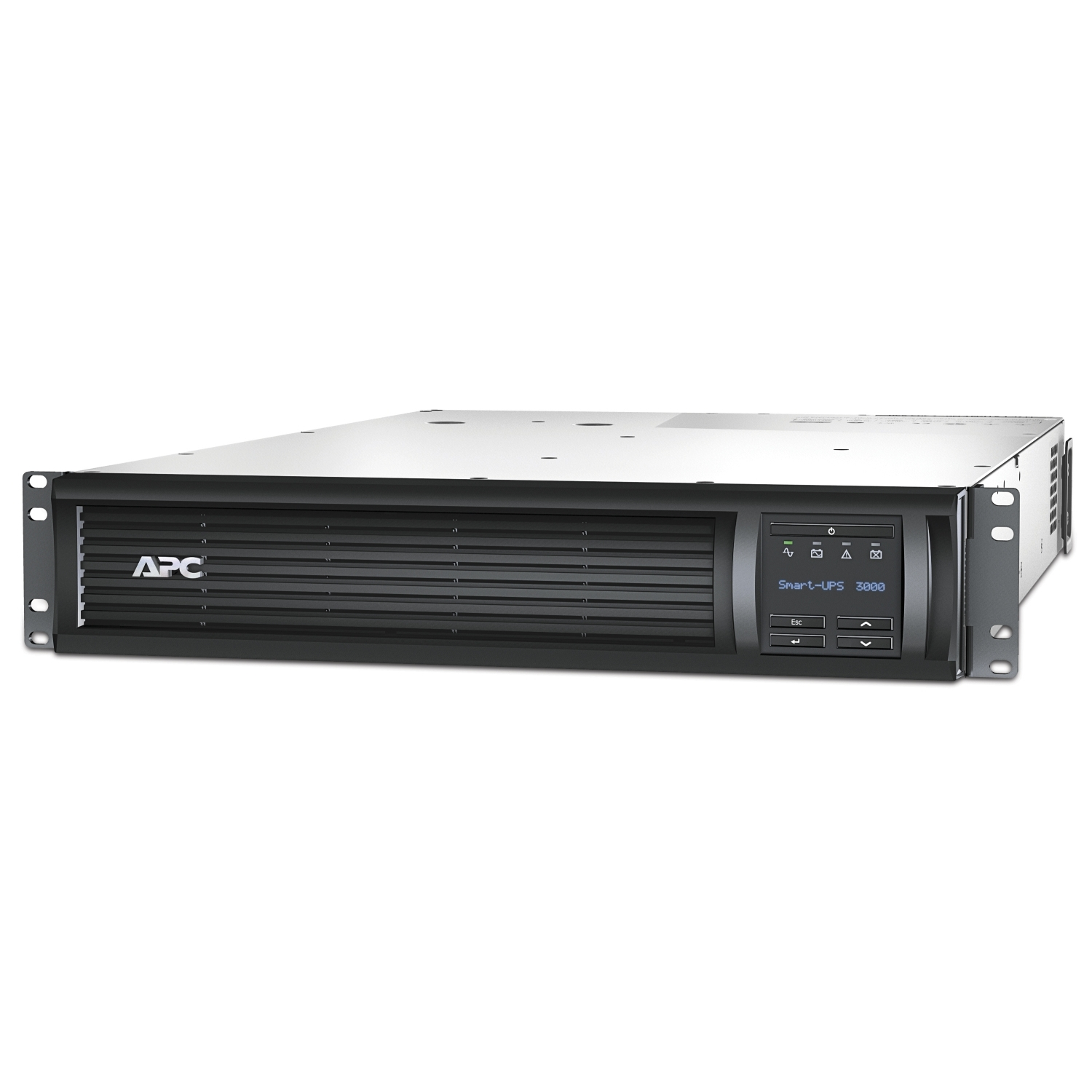

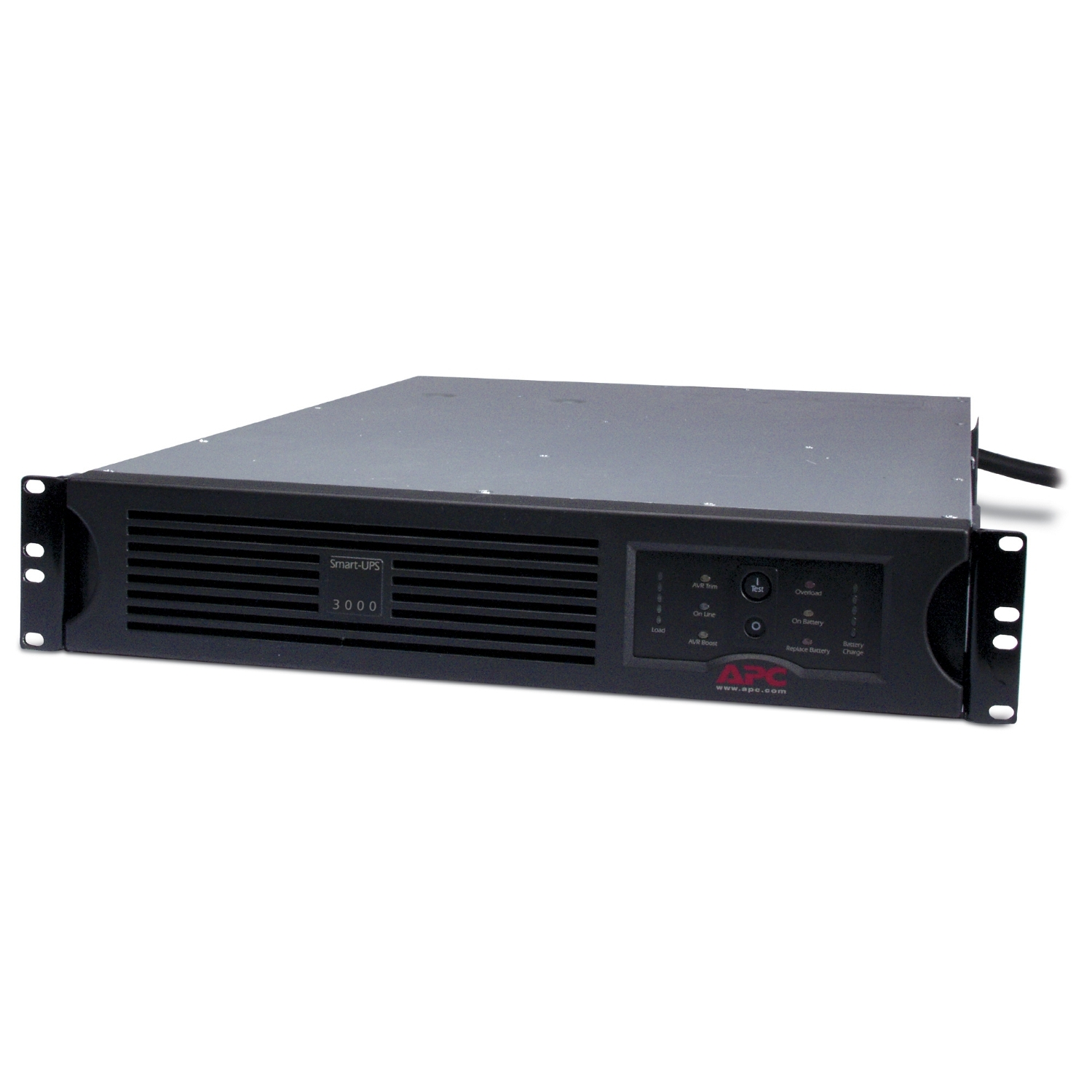

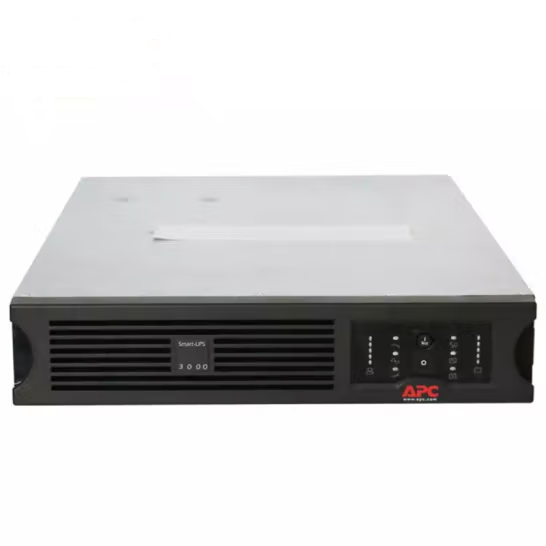

APC SUA3000R2ICH(discontinued)replaced by SMT3000RMI2U-CH, Line Interactive,rack, 230V, 4x IEC C13/1 IEC 320 C19, SmartSlot, AVR, LCD

Purchase Support +0086 19710409880 Albert

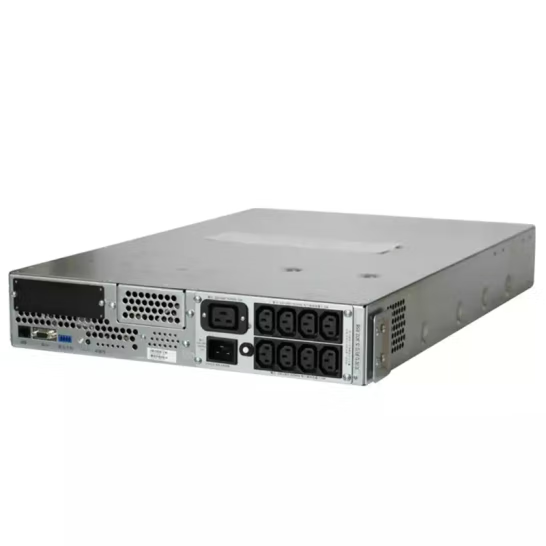

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 3000VA rack line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 8x IEC 320 C13+1 IEC 320 C19 outlets, and 2x IEC jumper cables. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. the APC replacement battery cartridge RBC43 helps restore UPS performance to the original specifications.

APC Smart UPS A Ordering List of SMT Series Products
Discontinued ModelsReplaced ModelsModel
SUA750ICHSMT750I-CHAPC Smart-UPS T 750VA LCD 230V for China
SUA1000ICHSMT1000I-CHAPC Smart-UPS T 1000VA LCD 230V for China
SUA1500ICHSMT1500I-CHAPC Smart-UPS T 1500VA LCD 230V for China
SUA2200ICHSMT2200I-CHAPC Smart-UPS T 2200VA LCD 230V for China
SUA3000ICHSMT3000I-CHAPC Smart-UPS T 3000VA LCD 230V for China
SUA1000R2ICHSMT1000RMI2U-CHAPC Smart-UPS T 1000VA LCD RM 2U 230V for China
SUA1500R2ICHSMT1500RMI2U-CHAPC Smart-UPS T 1500VA LCD RM 2U 230V for China
SUA2200R2ICHSMT2200RMI2U-CHAPC Smart-UPS T 2200VA LCD RM 2U 230V for China
SUA3000R2ICHSMT3000RMI2U-CHAPC Smart-UPS T 3000VA LCD RM 2U 230V for China

Summary: APC SUA3000R2ICH

Delivery: Usually available in stock.

Key Information:

Load Runtime: 3 minutes.

Maximum Capacity Used: 100%.

Main Input Voltage: 230V.

Main Output Voltage: 230V.

Rated Power [W]: 2700W.

Rated Power [VA]: 3000VA.

Input Connection Type: IEC 320 C20, Schuko CEE 7 / EU1-16P, BS1363A UK.

Output Connection Type: 8 IEC 320 C13, 2 IEC Jumpers, 1 IEC 320 C19.

Rack Units: 2U.

Number of Cables: 1.

Battery Type: Lead-acid battery.

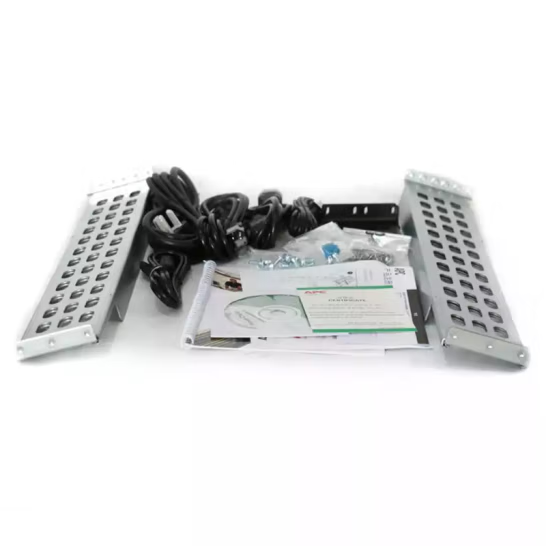

Included Accessories: Software CD, Rack Mounting Brackets, Smart-UPS RS232 Signal Cable, User Manual, USB Cable.

Battery and Runtime:

Runtime: View Runtime Graph.

Additional Parameters:

Selectable Output Voltage: 220V, 230V, or 240V.

Auto-detectable, Extendable Delay Time: 0.

Pre-installed Batteries: 0.

Empty Battery Slots: 0.

Typical Recharge Time: 3 hours.

RBC™ Quantity: 1.

Battery Lifespan: 3-5 years.

Venturi Pipe: RBC43.

Battery Power in VAH: 528 VAh runtime.

Battery Charging Voltage (W): 175W rated.


Number of Filled Power Module Slots: 0.

Number of Free Power Module Slots: 0.

Redundant: No.

Physical Parameters:

Color: Black.

Height: 8.9 cm.

Width: 48.3 cm.

Depth: 66 cm.

Product Weight: 43.64 kg.

Installation Position: Front.

Mounting Preference: Lower.

Installation Type: Rack-mounted, Two post mountable (0).

USB Compatible: No.


Input Voltage Range: Adjustable, 151V-302V, 160V-286V.

Network Frequency: 50/60 Hz +/- 3 Hz auto-sensing.


Harmonic Distortion: Less than 5% at full load.

Maximum Configurable Power in VA: 3000 VA.

Maximum Configurable Power (W): 2700 W.

Transfer Time: Typical 2ms.

Topology: Online interactive.

Waveform Type: Sine wave.

Output Frequency (Sync to Mains): 47-53 Hz (50 Hz nominal, sync to mains), 57-63 Hz (60 Hz nominal, sync to mains).


Sound Level: 47 dBA.

Heat Dissipation (Online Operation): 400 Btu/h.

Operating Elevation: 0-10000 ft.

Operating Temperature: 0-40 °C.

Storage Temperature: -15-45 °C.

Storage Elevation: 0.00-15240.00 m.

Relative Humidity: 0-95%.

Storage Relative Humidity: 0-95%.

Communication and Management:

Control Panel: LED display indicating online operation, battery operation, overload, and battery replacement.

Emergency Shutdown: Yes.

Free Slots: 1.

Alarm: Alarm when on battery, distinctive low battery alarm, configurable delays.

Surge Protection and Filtering:

Surge Energy Rating: 480 Joules.

Filtering: Multi-stage noise filtering, complies with UL1449 standard.

Package Unit:

Unit Type of Package 1: PCE.

Number of Units in Package 1: 1.

Package 1 Height: 25.4 cm.

Package 1 Width: 62.2 cm.

Package 1 Length: 98 cm.

Package 1 Weight: 56.701 kg.

Contract Warranty:

Warranty: 2-year repair or replacement, optional on-site warranties available.
